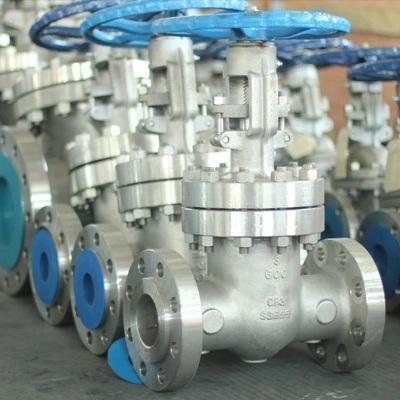

Stainless Steel Gate Valve

Med Stainless Steel Gate Valves are engineered and manufactured to guarantee volatile organic compound (VOC) leakage below 100 parts per million (ppm). Comprehensive baseline laboratory tests, including static and cyclic testing, have been conducted to define the critical design parameters required for low-emission sealing performance at both the stem packing seal and bonnet gasket seal areas. A standardized in-house testing procedure has been established and implemented periodically to verify that all standard product designs and manufacturing specifications consistently ensure the Med Stainless Steel Gate Valves achieve a maximum VOC leakage of 100 ppm before factory shipment.
The main features of Med Stainless Steel Gate Valves are listed as follows:

• Size Range : 1-1/2 Inch to 48 Inch
• Pressure Ratings : ANSI Class 150 LB to 2500 LB
• Compliance Standards : API 600, ASME B16.34 and equivalent industrial standards
• Material Options : ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, SS 304, SS 316, SS 304L, SS 316L and other stainless steel grades
• End Connections : International standard flanged ends (FF, RF, RTJ)
• Structure Type : OS&Y (Outside Stem and Yoke) design
• Sealing Type : Metal-seated with API Trim CL2, CL10, CL12 and other optional trims
• Optional Configurations : Locking device, stem extension, and direct mounting interface complying with ISO 5211 standard
• Flow Path : Full port design
