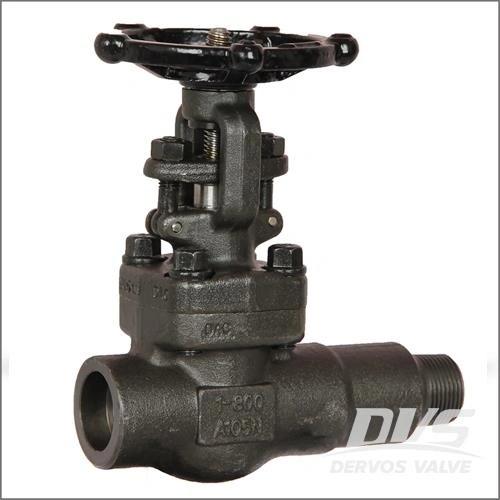

Extended Body Gate Valve, A105N, 1 Inch, Class 800, Male NPT

This extended body gate valve isconstructed from ASTM A105 material with a forged forming process. It isavailable in a single size of 1 Inch, designed to work under Class 800 LBpressure rating and withstand operating temperatures reaching as high as 500℃.

Full Product Range

Our complete series of forged steelgate valves covers a wide selection of body materials to suit diverseindustrial working media and operating environments, including ASTM A105, ASTMA350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTMA182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTMA182 F55, as well as premium alloy options such as Inconel Alloy, Monel Alloyand Hastelloy Alloy

All valves are manufactured in strictcompliance with international authoritative industry standards, including API602, API 606, BS 5352, ASME B16.34, ASME B16.11, ASME B1.20.1 and ASME B16.25.The dimensional scope spans 1/2 Inch to 4 Inch, with applicable pressureratings ranging from Class 800 LB to Class 1500 LB. The maximum allowableservice temperature for the whole product line hits 500℃, and integral forgingis adopted as the unified forming method for all valve bodies to ensure robuststructural integrity and outstanding pressure-bearing performance.

Chinamanufacturer offers high-quality industrial products with competitivepricing and advanced production capabilities.
